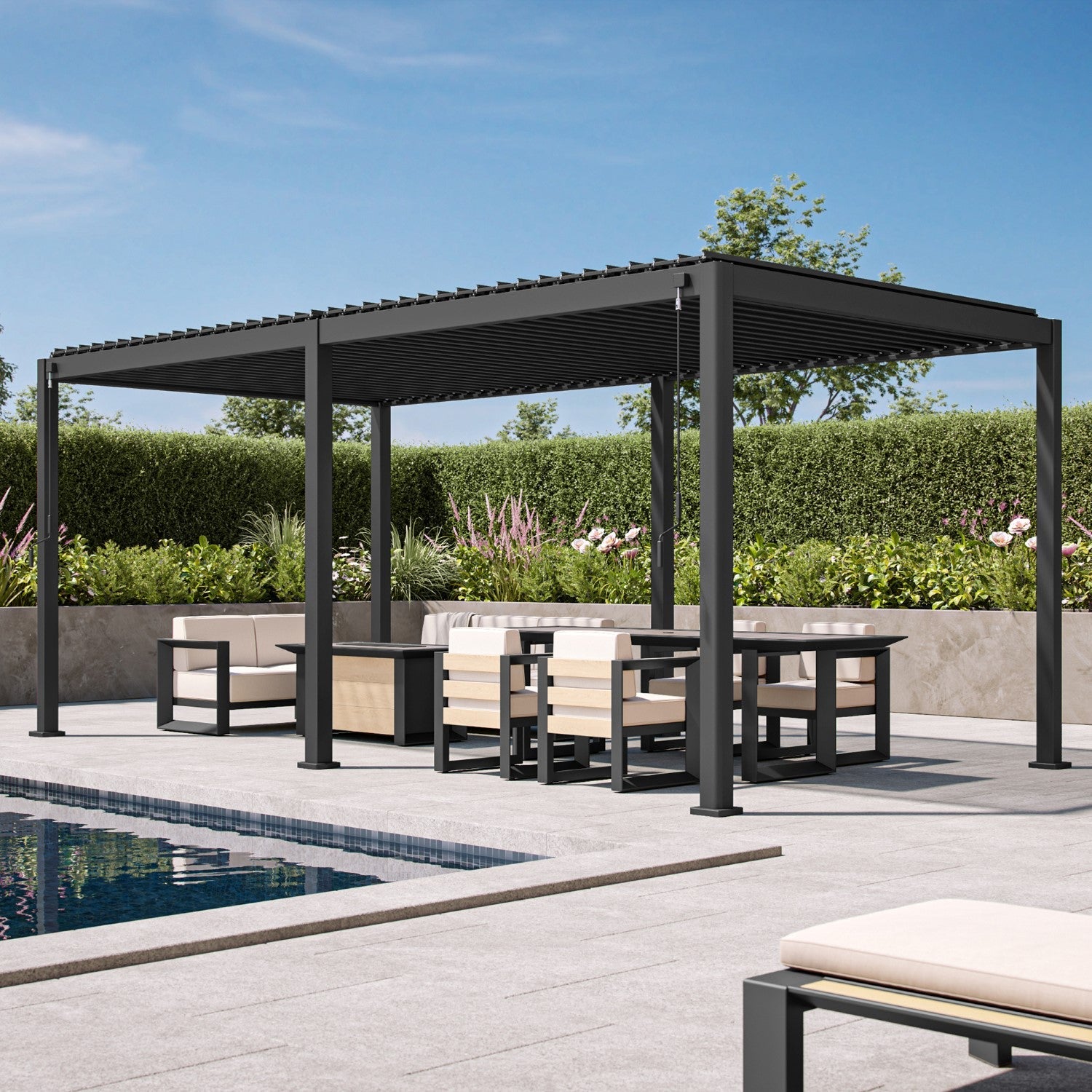

Patioslife Atlantic | 3 x 6m Contemporary Metal Pergola with Adjustable Roof Panels & LED Lighting System, Stylish Outdoor Shelter for Entertaining

There's a reason so many pergolas end up unused half the year — scorching under the summer sun, drenched the second a storm rolls through, or corroding after a run of coastal humidity. The Atlantic was built to fix exactly that.

One turn of the crank tilts the metal louvres through a full 87° range — fully open for soaking up the sun and stargazing, angled to catch a cooling breeze, or fully closed to shut out a sudden summer downpour. Whatever the forecast, your outdoor space stays usable.

What Makes It Different

• Powder-coated metal frame — no bare steel, no rust, no repainting.

• Adjustable louvred roof — smooth 0–87° tilt via effortless manual crank.

• 100% Weatherproof when closed — engineered with hidden internal drainage through the posts.

• Wind-tested to 130 km/h — independently certified by Bureau Veritas for severe storm seasons.

• Snow-load certified — rated up to 100 kg/m², ideal for alpine regions like the Snowy Mountains.

• Freestanding stability — no wall fixing needed, secured securely with heavy-duty masonry anchors.

Low Maintenance, by Design

No repainting, no rust patches to worry about. Just an occasional hose-down and a quick annual check are all it takes to keep it looking as good as day one — even after a full Aussie summer of harsh UV and sudden storms.

Backed with Confidence

Every Atlantic™ comes with a 5-year structural warranty and a 45-day change-of-mind return policy — on top of your guaranteed rights under Australian Consumer Law (ACL) — so you can make this decision without the second-guessing.

Available in Charcoal Grey, from 3 × 3m up to 4 × 6m — sized to fit backyards both compact and generous.

✨Trusted & Loved by Our Patioslife Community → Watch Successful Cases

Turn your alfresco area into the space you actually want to spend time in, rain or shine.

Technical Specifications

Frame & Structure

• Frame Material: High-grade Metal Alloy

• Surface Finish: Premium powder-coated finish (Rust-proof and UV-resistant)

• Wall Thickness: Heavy-duty 1.5–2.0 mm profile

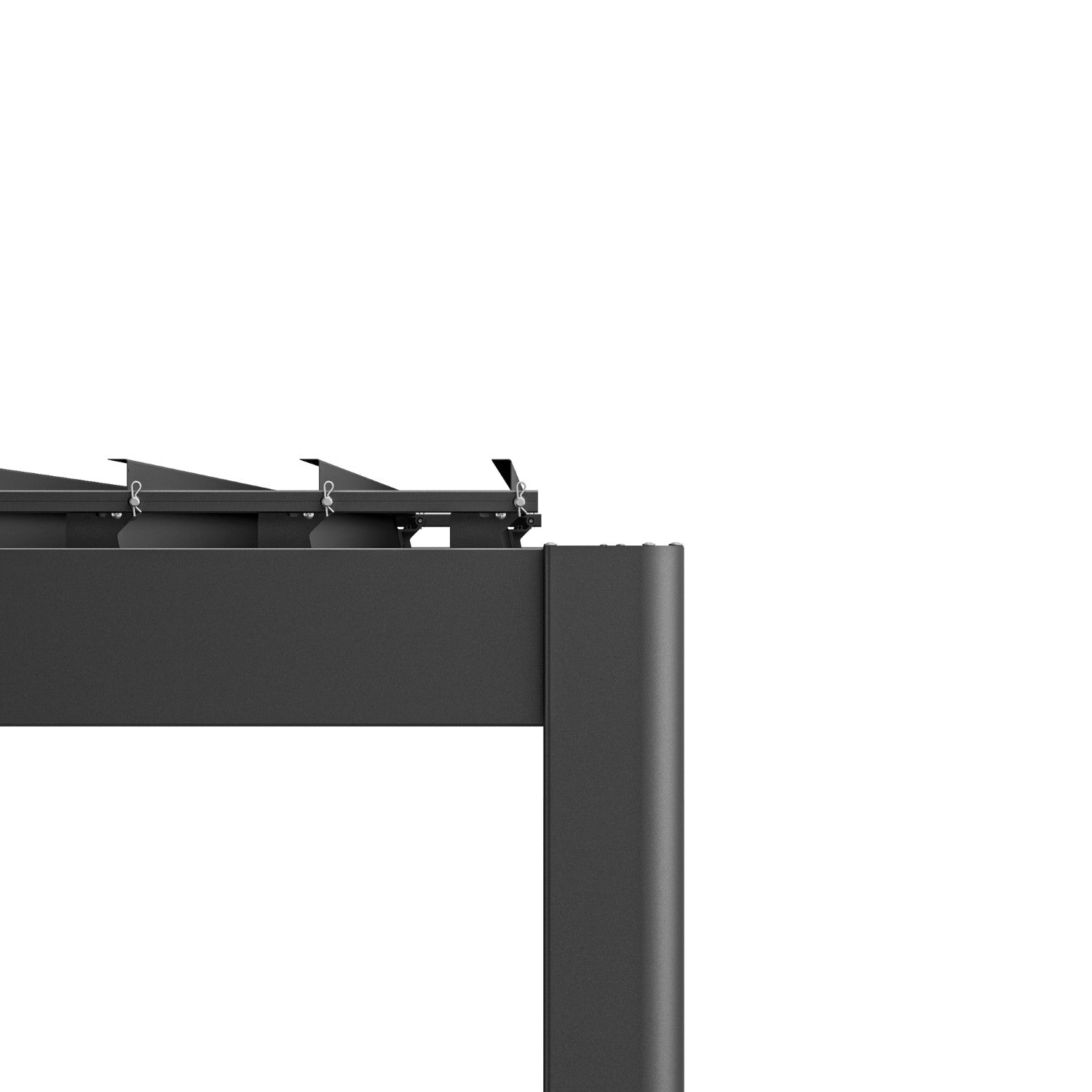

• Beam Dimensions: Robust 160 × 95 mm (with integrated gutter) | Wall Thickness: 1.6–1.7 mm

• Louvre Blade Dimensions: Aegis series 160 × 33 mm aerodynamic blades | Wall Thickness: 1.4 mm

• Fasteners & Fittings: Heavy-duty galvanised steel hardware

Louvre System

• Tilt Range: Smooth 0°–87° adjustable tilt (from completely open to fully watertight)

• Operation: Effortless manual hand-crank system

• Drainage: Fully integrated internal drainage channels, seamlessly routed through the posts

Weather Performance

• Wind Rating: Independently certified up to 130 km/h (Bureau Veritas tested) — built to stand up to severe summer storms

• Snow Load: Engineered for up to 100 kg/m² (approx. 50 cm snow depth) — ideal for alpine areas such as the Snowy Mountains or Tasmanian highlands

• Water Resistance: Sealed louvre design with internal drainage channels — storm-ready when louvres are fully closed

• UV Resistance: High-durability powder coat rated for Australia's harsh sun exposure

Available Sizes & Colours

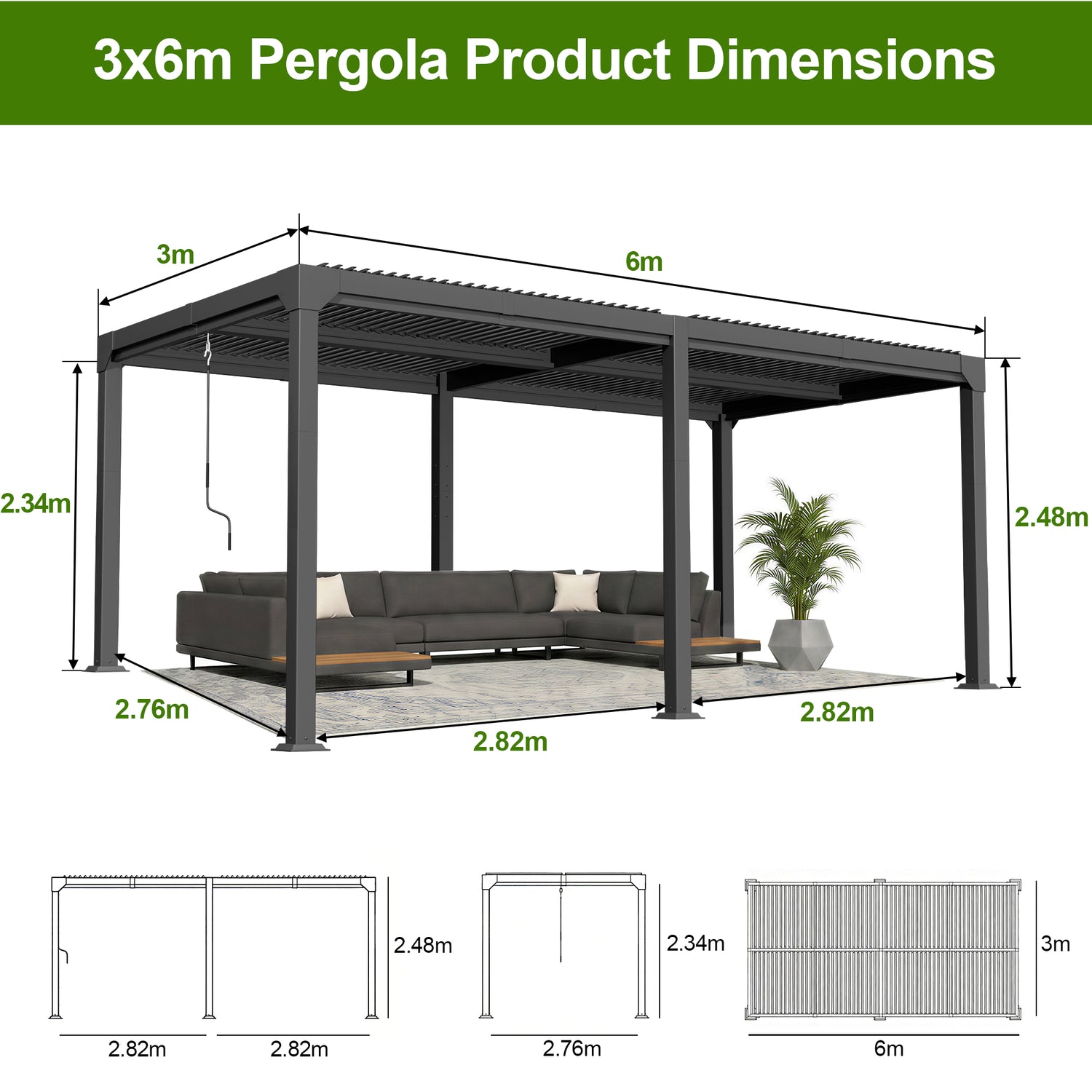

• 3m Width Series: 3 × 3 m | 3 × 4 m | 3 × 5 m | 3 × 6 m

• 4m Width Series: 4 × 4 m | 4 × 5 m | 4 × 6 m

• Colour: Charcoal Grey

Warranty & Compliance

• Structural Warranty: 5 Years peace of mind

• Finish Warranty: 2 Years on surface coating

• All warranties apply in addition to your rights under Australian Consumer Law.

Installation & Assembly

📥 Download the full graphical guide

• Assembly: Self-assembly

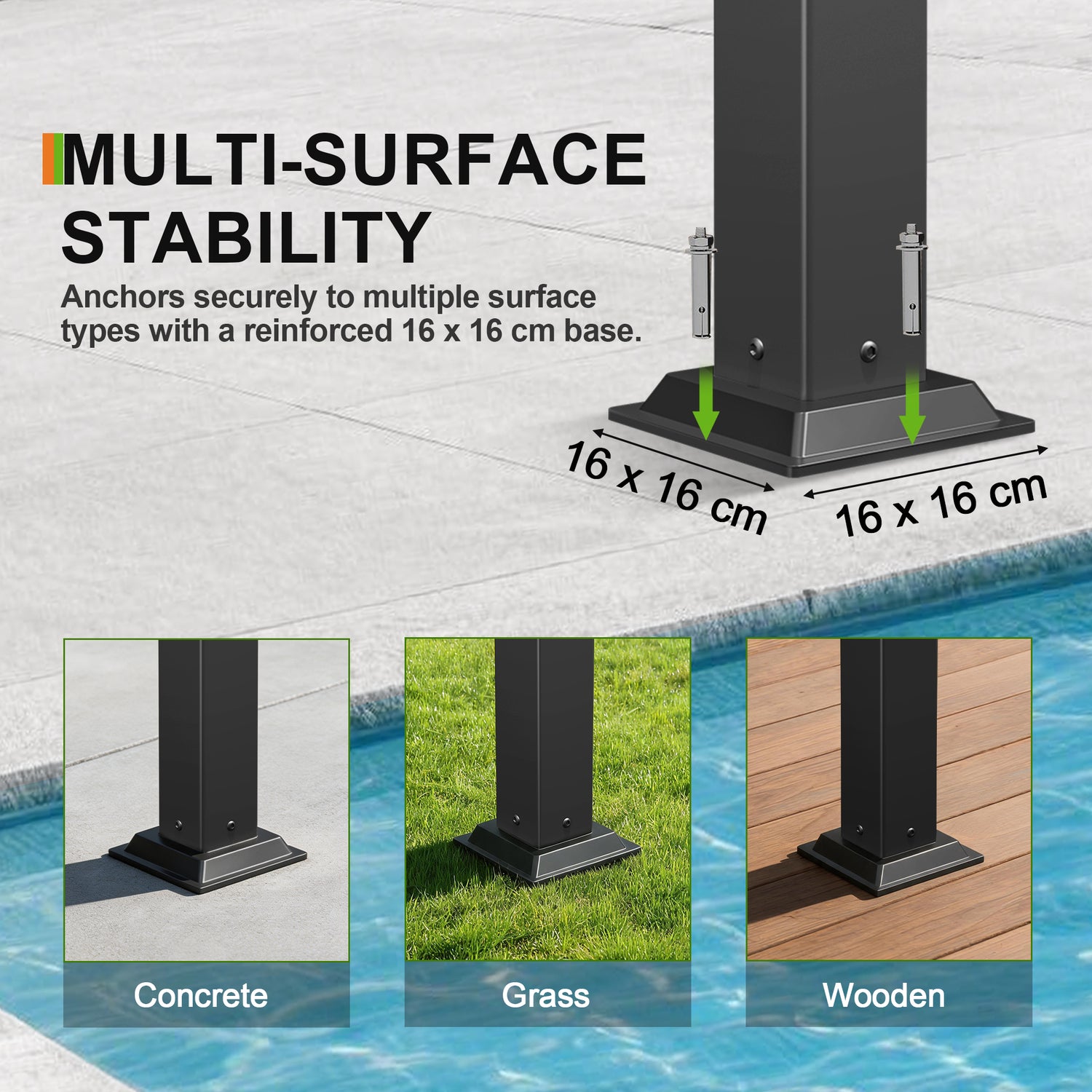

• Fixing Type: Ground-mounted with M10 × 100mm stainless steel masonry anchors (DynaBolts equivalent, included).

• Installation Requirement: For best stability, secure the pergola to a flat, solid surface — such as concrete, wood decking, or firm ground — using the included anchor bolts. Anchoring is especially important in areas with strong wind or uneven terrain, and pre-embedding the posts into the ground offers additional support where a solid surface isn't available.

• Recommended Installers: A minimum of 3 people is required throughout installation, with at least 2 people needed to safely lift and carry the components from the packaging.

Please Note: This is a general-version manual. Specific installation details such as drainage direction may vary according to your approved order specifications — please review your order details before assembly, and re-read this manual fully before starting.

Before You Begin

1. Unpacking: Check all parts against the packing list before starting. Do not discard any packaging materials until installation is fully complete, in case parts need to be checked or exchanged.

2. Surface Protection: Assemble the frame on a soft covering (e.g., carpet or flattened cardboard) to protect the metal profiles from scratching.

3. Protective Film: Fully remove the protective film from all components during installation. Once exposed to the sun outdoors, the film becomes very difficult to remove.

4. Warranty & Compliance: Do not modify the product or substitute non-original accessories, as this will void your warranty. Patioslife is not responsible for damage resulting from incorrect assembly.

Tools & Materials Required

Installation tools and silicone sealant should be purchased locally:

• Silicone sealant (for weather-sealing the post caps)

• Impact drill with a 12mm masonry drill bit (drilling depth for anchor bolts: 100mm)

• Phillips (cross-head) screwdriver bit

• 4mm Allen key and a 16mm spanner

• Steel hammer and rubber mallet

• Tape measure, spirit level, and marker pen

• Step ladder and safety helmet

Function Testing

Before completing final assembly, test the hand-crank mechanism by rotating the louvres fully open and closed. If the louvres turn smoothly, continue to the remaining steps. If not, recheck the connection bar and mechanical arm installation before proceeding — this ensures your pergola's manual louvre system operates correctly from day one.

Maintenance & Care

• Clean the surface at least once a year to preserve the powder-coated finish.

• Use only a soft sponge or non-abrasive cloth. Avoid rags, abrasive cleaning pads, wire wool, or coloured cloths.

• Do not use acidic or alkaline cleaning products. Rinse with neutral-pH clean water and wipe dry.

• If using a pressure washer, keep a safe distance and use an appropriate nozzle, water temperature, and pressure.

• Check all screws for tightness after installation, and re-check at least once a year.

• Regularly inspect seals for leaks, and clear leaves and debris from the gutters to keep drainage channels clear.

Warranty Exclusions: While the drainage system is designed to be effective, it cannot guarantee complete waterproofing in extreme conditions. Damage from severe storms, cyclones, hail, or bushfire ember exposure is not covered under warranty.
